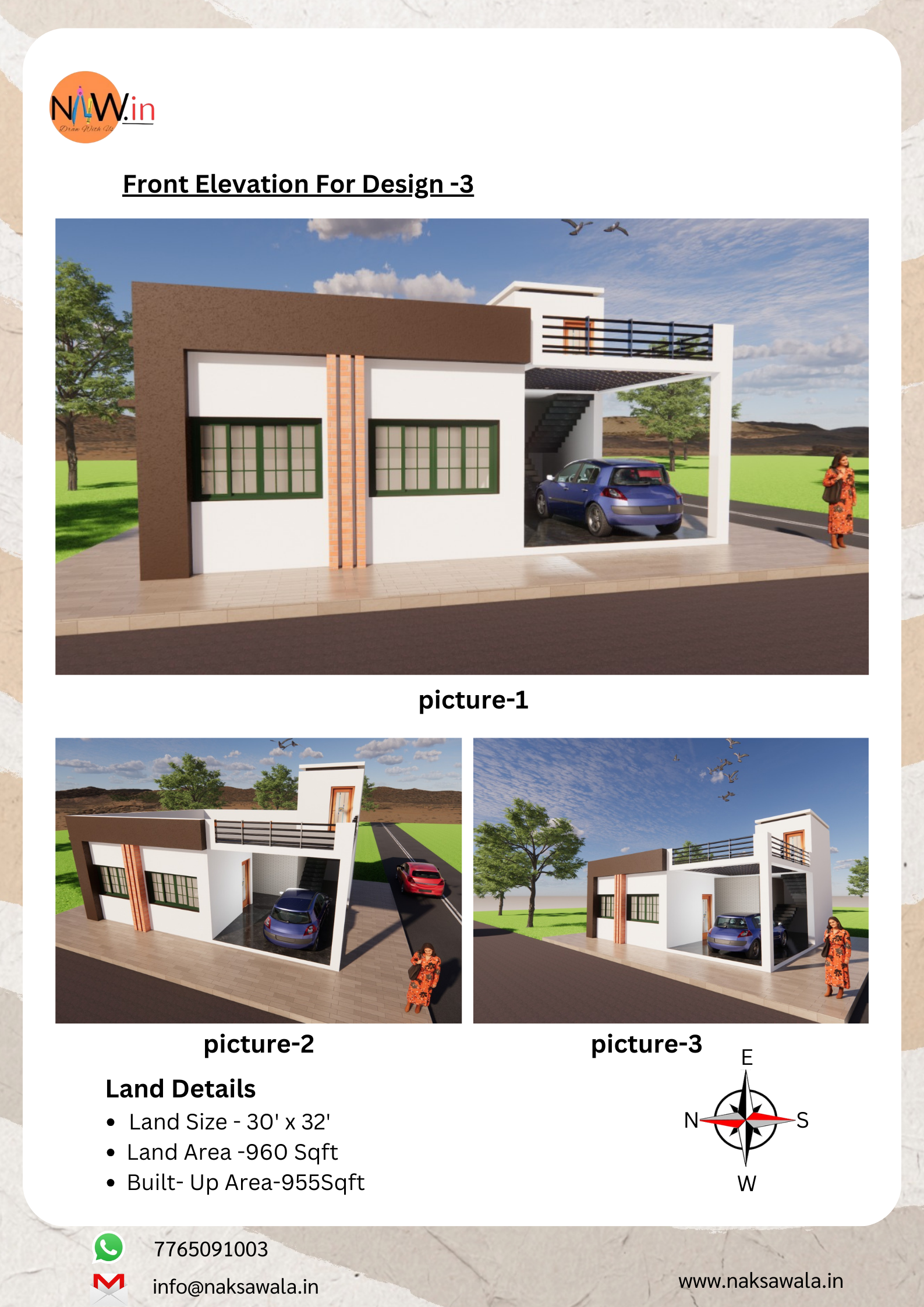

30’×32’ Compact Urban 2BHK Residence
955 Sq.ft Built-up | Smart Zoning with Car Portico & Internal Staircase
This detailed architectural eBook explains the complete planning logic behind a well-balanced 2BHK residence designed for a 30’×32’ plot. With a built-up area of approximately 955 sq.ft, the layout demonstrates efficient space planning, functional zoning, and future vertical expansion readiness.

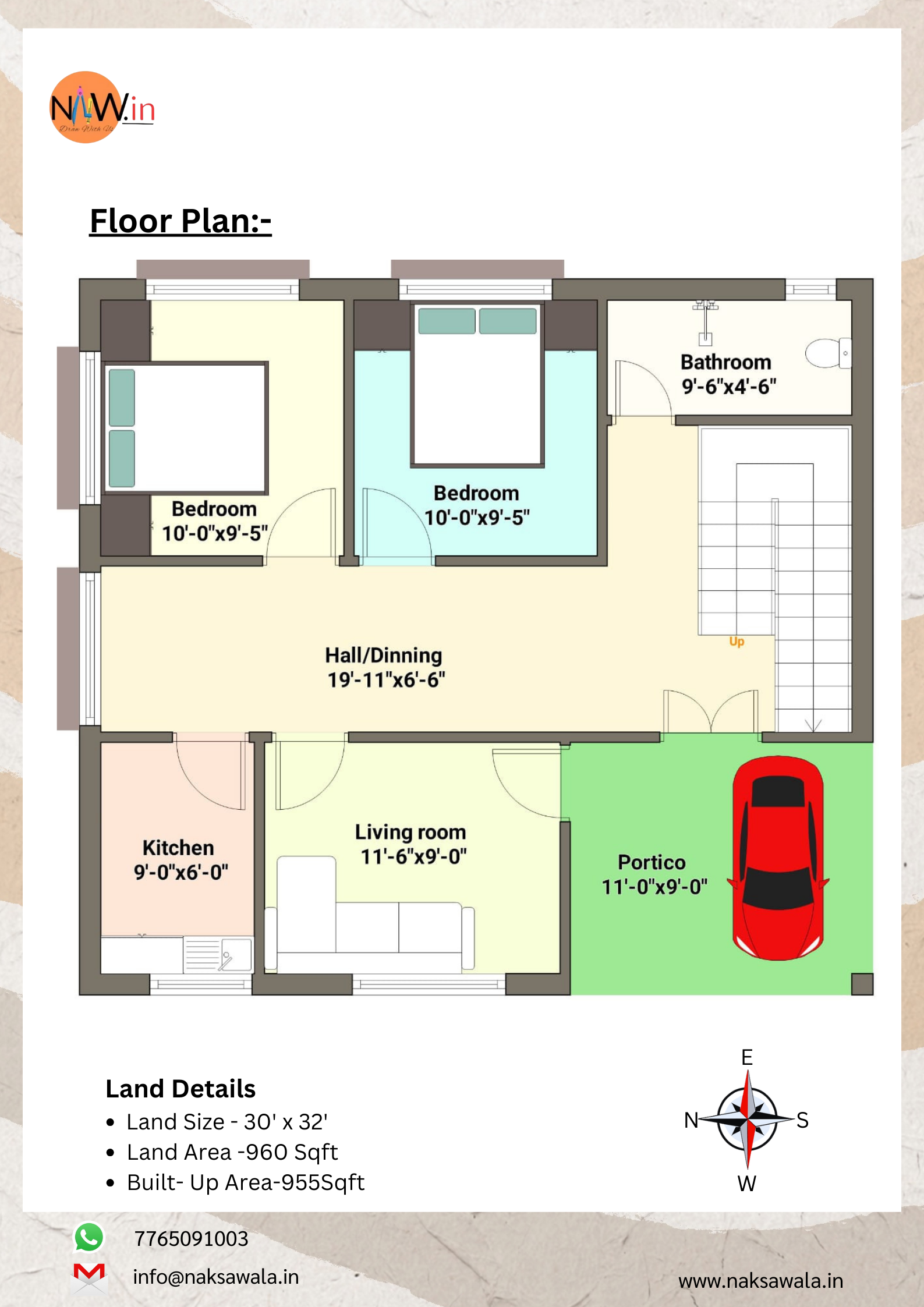

Spatial Highlights:
✔ Living Room – 11’-6” × 9’-0”
✔ Hall/Dining – 19’-11” × 6’-6”
✔ Kitchen – 9’-0” × 6’-0”
✔ Bedroom 1 – 10’-0” × 9’-5”
✔ Bedroom 2 – 10’-0” × 9’-5”
✔ Bathroom – 9’-6” × 4’-6”
✔ Internal Staircase
✔ Front Portico – 11’-0” × 9’-0”
Design Logic & Functional Planning
The layout is divided into clear functional zones:
-
Public Zone → Living Room & Portico
-
Semi-Private Zone → Hall/Dining & Kitchen
-
Private Zone → Bedrooms & Bathroom
The elongated hall/dining area enhances spatial flow and improves connectivity between rooms while maintaining privacy.
The internal staircase is strategically positioned to allow G+1 future expansion without disturbing the ground floor layout.
Structural & Practical Advantages
-
Balanced load distribution through aligned wall system
-
Compact beam spans for cost efficiency
-
Front portico provides vehicle protection and thermal buffer
-
Efficient circulation reduces dead space
Ideal For:
-
30 ft wide urban plots
-
Compact yet spacious family homes
-
Budget-conscious construction with expansion potential
-
Modern small urban housing solutions
This eBook explains not only the drawing but the architectural reasoning behind each spatial decision.
