Future Build 39×28 – Premium 2BHK Planning Manual

Description

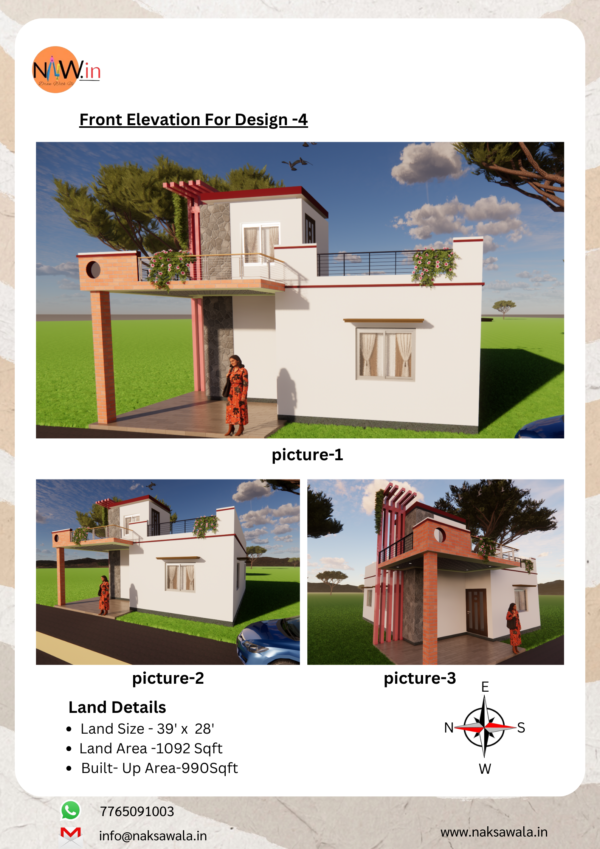

39’×28’ Compact Urban 2BHK Residence

990 Sq.ft Built-up | Spacious Hall Layout with Car Portico & Internal Staircase

This detailed architectural eBook presents a professionally structured design analysis of a 2BHK residence planned for a 39’×28’ plot. With a built-up area of approximately 990 sq.ft, the layout offers a balanced combination of comfort, circulation efficiency, and structural alignment.

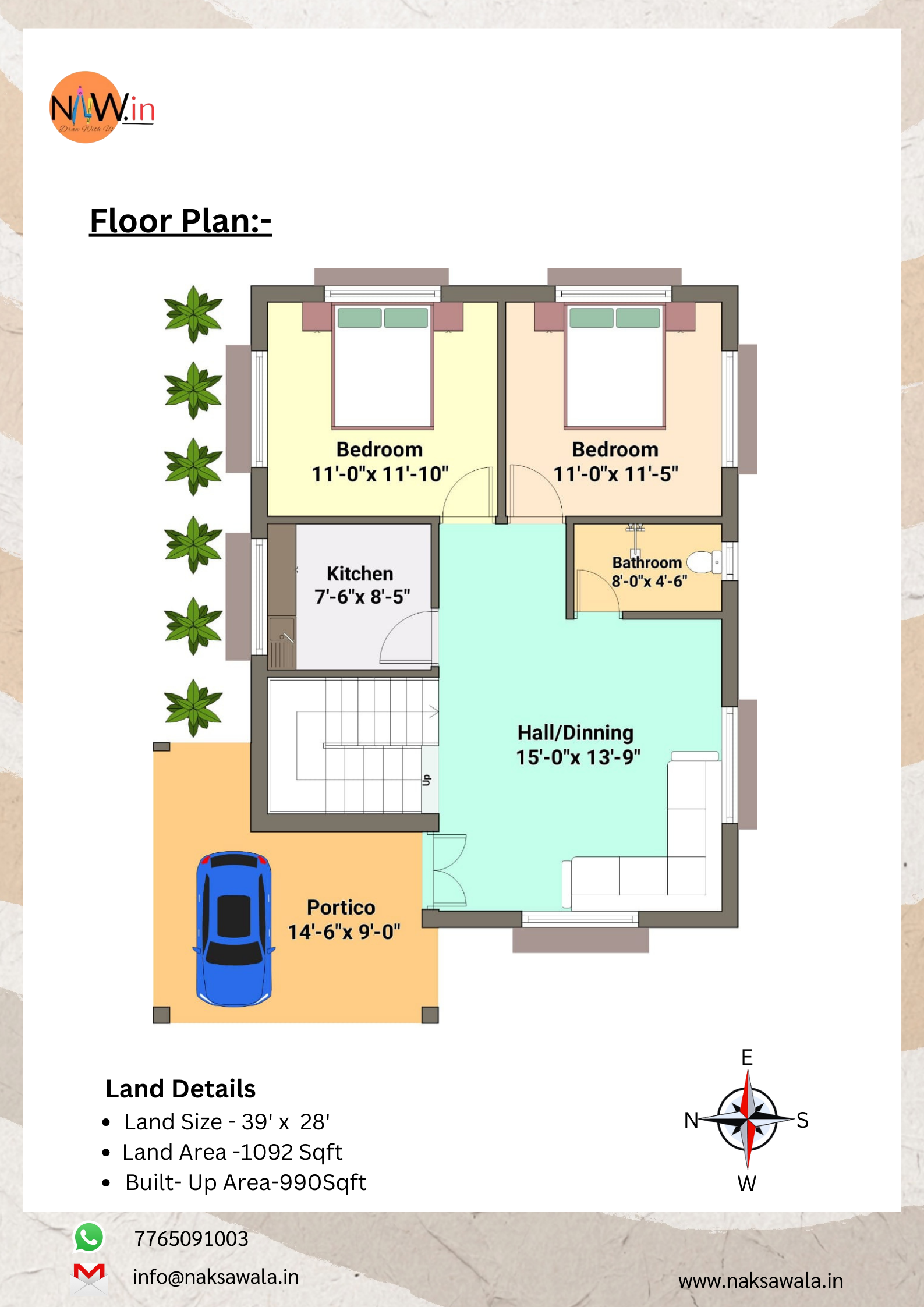

Spatial Highlights:

✔ Hall/Dining – 15’-0” × 13’-9”
✔ Bedroom 1 – 11’-0” × 11’-10”
✔ Bedroom 2 – 11’-0” × 11’-5”
✔ Kitchen – 7’-6” × 8’-5”
✔ Bathroom – 8’-0” × 4’-6”
✔ Internal Staircase
✔ Car Portico – 14’-6” × 9’-0”

Architectural Planning Logic

The design follows a smart zoning pattern:

• Public Zone → Hall/Dining & Portico

• Semi-Private Zone → Kitchen

• Private Zone → Bedrooms & Bathroom

The 15’×13’-9” hall creates a spacious central gathering space, improving natural airflow and furniture flexibility.

Both bedrooms are proportionally designed for optimal bed placement, wardrobe integration, and circulation comfort.

Structural & Practical Advantages

• Internal staircase allows seamless G+1 expansion

• Wider plot length ensures better light penetration

• Car portico provides covered parking and heat buffer

• Balanced wall alignment improves load distribution

Ideal For:

• 28 ft wide urban plots

• Medium-sized families

• Future expansion plans

• Modern compact housing solutions

This eBook not only provides the layout but explains the reasoning behind each spatial dimension and structural alignment.
